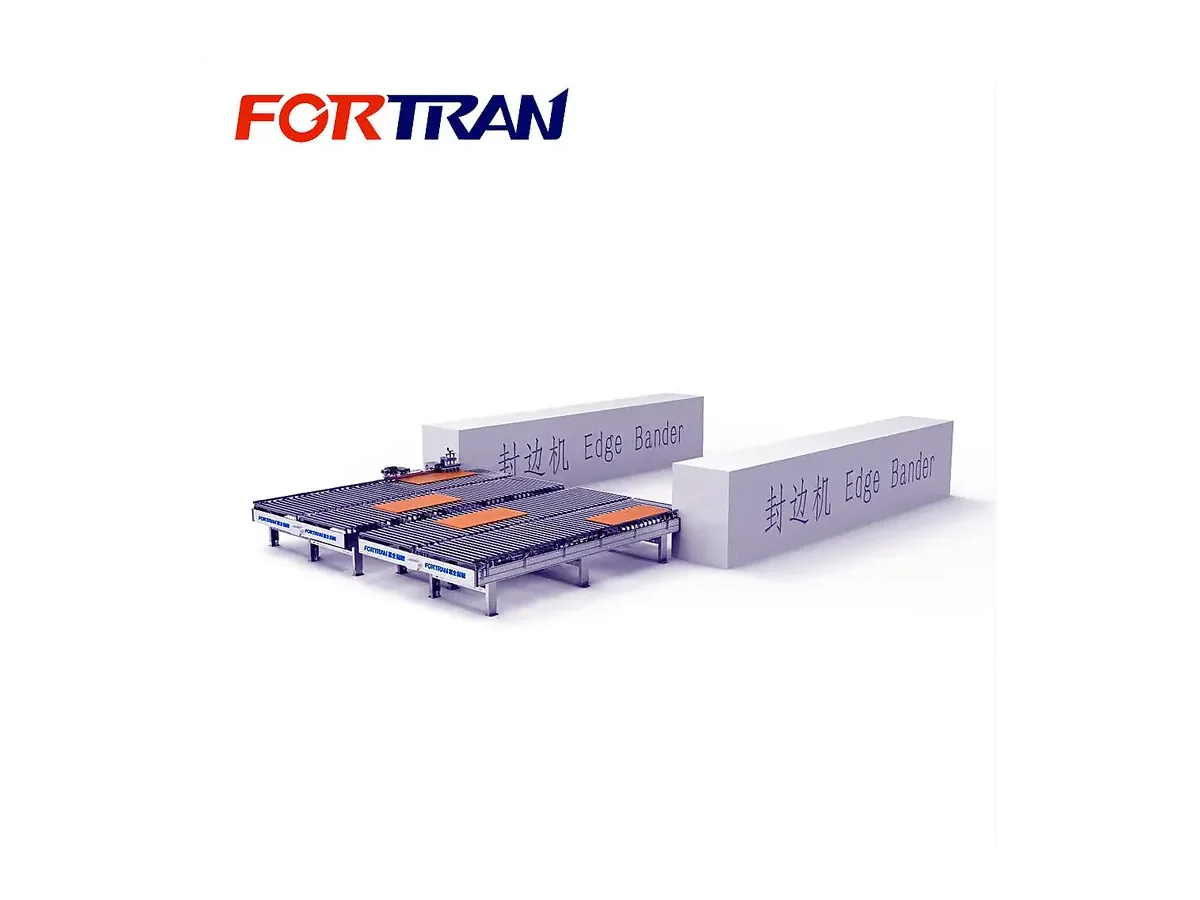

Double-Row Panel Return System for Twin Edge Banders同向双封边机双排回料系统
Provides two return lanes between same-direction edge banders to separate panel flow and support higher-throughput operation.在两台同向封边机之间设置双排回料通道，用于分流板材并支持更高产能。
Images and specifications show a representative configuration. Final equipment details and delivery schedule are confirmed after your requirements are reviewed.图片与参数展示代表性配置；最终设备细节与交付安排将在需求评审后确认。
Technical overview技术概览
Core specifications.核心参数
Use these reference specifications as a starting point. Send your workpiece range, line layout and target output to confirm the configuration.以下参数可作为选型参考。请提供工件范围、产线布局和目标产能，以便确认配置。
Working height工作高度
900±50 mm900±50 mm
Plate aspect ratio板材长宽比
1:7.51:7.5
Workpiece length工件长度
250–2750 mm250–2750 mm
Maximum load最大载荷
60 kg60 kg
Workpiece width工件宽度
250–1220 mm250–1220 mm
Conveying speed输送速度
18–32 m/min18–32 m/min
Application fit应用适配
Is this equipment suitable for your line?这款设备是否适合您的产线？
Use this checklist before fixing a model or requesting a final quotation.在确定型号或索取最终报价之前，可先根据以下条件进行判断。
A likely fit when适合考虑的情况
Workpieces need to return around a compatible edge-banding process after interface review.工件需要围绕兼容的封边工序自动回送，并在选型前确认设备接口。
Confirm before selection选型前需要确认
Workpiece range, target throughput, current machine model, signal and mechanical interfaces, line direction and available space.工件范围、目标产能、现有设备型号、信号与机械接口、产线流向以及可用空间。
Do not lock the model yet when暂不建议直接确定型号
The product range, layout or output target is not yet stable. Begin with an application review so the equipment is not sized around incomplete conditions.产品范围、布局或产能目标尚未稳定。建议先进行应用评估，避免按照不完整条件确定设备。
Helpful details to send建议提交的信息
Workpiece length / width / height, weight, current equipment, layout, target throughput and destination country.工件长/宽/高、重量、现有设备、厂房布局、目标产能和目的国家。
Is this the right solution for your production line?这项方案是否适合您的产线？
Send your workpiece sizes, target output, current machine model and destination country so we can review line compatibility and configuration options.请提供工件尺寸、目标产能、现有设备型号和目的国家，以便评估产线适配性与可选配置。
